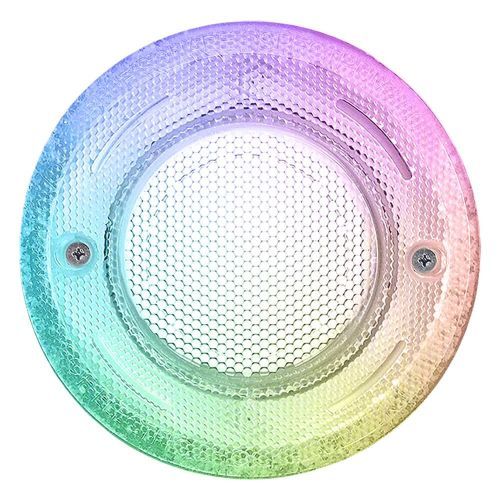

Evo MAX LED Pool Lighting for Existing Pools.
EvoMAX offers maximum illumination whilst preserving a flush profile. It has a lens illumination surface 45% larger than Evo2. The wet-niche LED Lighting System connects to the same cable and housing as Evo2, the difference is the lens area and the fact that the one-piece diffused acrylic lens extends beyond the dress ring providing increased beam spread and side-lighting effects
EvoMAX LED lights are available in either fixed colour or multi-colour options. The fixed colours are white, blue or green – the multi-colour option features Aqua-Quip’s unique Colour Selection Palette which provides an almost limitless variety of colour possibilities and a vast array of pre-programmed scroll and flash modes.
Connects using the innovative Quick Connect Plug Kit.
EvoMAX maintains a flush profile protruding just 9mm from the pool wall.

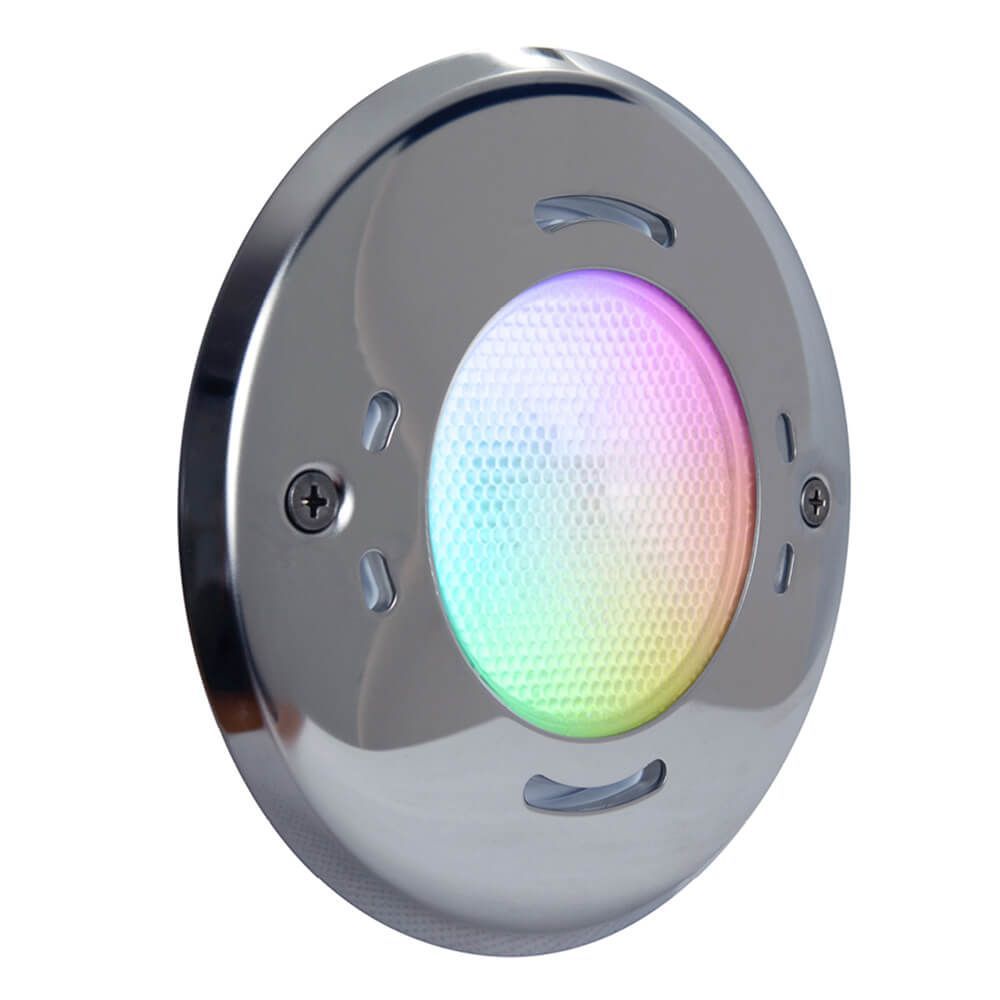

The elegance of the lighting system can be further enhanced with the addition of the optional stainless steel trim ring creating some spectacular visual effects. The EvoMAX system incorporates the latest generation LED technology and thermal management system to ensure maximum light output and reliability. In addition, EvoMAX lights are energy efficient, the entire system is extra-low-voltage ensuring safety at all times.
Benefits:
- Save on electricity, use 85% less power than halogen lights.
- Enjoy extra bright and more modern look, stylish design.
- Easy to upgrade by following simple steps.
- Easy installation and operation.
- Low power consumption, long life-span.
- Australian Made. Support our local jobs and economy while getting a quality product with great Warranty.
Key features:
- Operated by extremely safe extra low voltage supply (12V AC).
- Upgrade from Aqua-Star Halogen and Spectrum MK1 Flush Mounted lights.
- Supplied with a factory-sealed light and a Quick Connect Plug Kit.
- Mounts into the existing Aqua-Star housing.
Included in this kit:
- Pre-Assembled Quick-Connect Plug Assembly
- Female Screw Plug Terminal, with screws
- Evo2 LED Pool Light
- Spare Seals: Green Blue Red Black White
Specifications
| Nominal Supply Voltage: | 12V AC 50/60 Hz |
| Voltage Tolerance: | +20%, -20% |
| Protection Rating: | IPX8 (to 2.0m depth) |
| Power Consumption: | White, blue and green = 25 VA |
| Power Consumption: | Spectrum III Multi Colour = 30 VA maximum |
| Light Output (typical): | White–985 lumens, blue-300 lumens, green-595 Lumens |
| Fault Protection: | Power-cycle "run dry" thermal cut out. Voltage transient clamping |
EvoMAX LED Lights must only be operated underwater as they are water-cooled.
