Expect luxury and innovation with the Guardian Lux-V Series. Built with the latest full DC inverter technology and designed for cold-climate performance, the Lux-V 13kW delivers reliable heating and cooling all year round — even when outside temperatures drop to –15°C.

With vertical air discharge for efficient airflow and compact installation, plus a stylish ABS front panel and galvanized steel back, the Lux-V is as durable as it is powerful. Backed by an industry-leading warranty and local Australian service, this unit is the premium choice for smaller to mid-sized pools and spas.

Why Choose the Lux-V?

• C.O.P. up to 14.5 — exceptional efficiency with lower running costs

• Unbeatable Warranty & Local Support — 25 years on titanium heat exchanger, 5 years on compressor, full Australian service

• Cold Climate Ready — reliable operation down to –15°C with automatic fast defrosting

• DC Full Inverter Technology — advanced compressor, fans, and control system for consistent performance

• Heating & Cooling Function — use your pool year-round in any season

• Smart Controls — Wi-Fi connectivity, 4 operating modes, and intelligent LCD touchscreen with 0.1°C precision

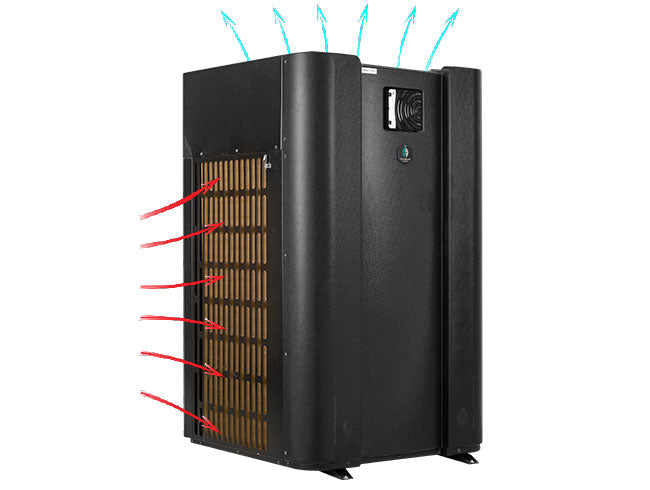

• Vertical Air Discharge — space-saving design with efficient airflow

• Durable Construction — ABS front panel with galvanized steel back for long outdoor life

• Quiet Operation — powerful performance without disruptive noise

• Eco-Friendly R32 Refrigerant — reduced environmental footprint

Smart Wi-Fi Control – Heat Your Pool From Anywhere

Get a FREE Custom Pool Heating Quote in Minutes!

Finding the perfect heating solution for your pool is quick and easy. Just share a few details with us, and the Waternex Australia team will create a personalized plan tailored to your needs—all for FREE.

Get Your FREE Custom Quote Now!

Enjoy a warm, inviting pool without any hassle or cost to get started!

Technical Specifications — Lux-V 13kW (GLV-13)

Performance (Air 27°C / Water 26°C / Humidity 80%)

• Heating Capacity: ~13.0 kW

• C.O.P.: up to 14.5

Performance (Air 15°C / Water 26°C / Humidity 70%)

• Heating Capacity: ~9.5–10 kW (typical for size)

• C.O.P.: ~7.0–4.7

Construction & Components

• Operating Air Temperature: –15°C to 43°C

• Compressor: Mitsubishi Rotary/Inverter or Panasonic Rotary/Inverter

• Heat Exchanger: Titanium

• Casing: ABS front panel + galvanized steel back panel

• Power Supply: 220–240V~/1Ph/50Hz

• Electrical Connection: 15A plug/hardwired (model dependent)

• Rated Input Power: ~0.25–2.2 kW

• Max Rated Input Power: ~3.2 kW

• Sound Pressure (1m): 42–54 dB(A)

• Water Connection: 40 mm

• Net Weight: ~70 kg

• Unit Size: approx. 1150 × 500 × 950 mm (vertical design)

What’s Included

• 1 × Guardian Lux-V 13kW Heat Pump (GLV-13)

• 1 × Intelligent LCD Touch Controller

• 1 × User Manual & Quick Start Guide

• 1 × Warranty Information Pack

Applications

• Small to medium residential pools

• Swim spas and plunge pools

• Year-round heating and cooling, even in cold climates down to –15°C

Downloads

Guardian Lux-V Brochure

Guardian Lux-V User Manual
