Top-tier heating performance with rugged cold-climate capability. The Guardian Lux-V 24kW combines full DC inverter technology with dependable operation down to –15 °C, delivering luxury and reliability for larger residential pools and swim spas.

Built with premium materials — including a stylish ABS front and galvanized steel rear panel — and featuring vertical air discharge for efficient airflow and compact installation, the Lux-V offers convenience without compromising durability. Backed by an unbeatable warranty and local Australian service, it’s a high-end solution that brings both performance and peace of mind to your pool.

Why Choose the Lux-V?

• C.O.P. up to 14.5 — outstanding efficiency for reduced running costs

• Unbeatable Warranty & Local Support — 25 years on titanium heat exchanger, 5 years on compressor, full Australian service

• Cold Climate Ready — reliable operation down to –15 °C with automatic fast defrost

• DC Full Inverter Technology — advanced compressor, fan, and control system for stable performance

• Heating & Cooling Function — year-round comfort regardless of season

• Smart Controls — Wi-Fi connectivity, 4 operating modes, and an LCD touchscreen with 0.1 °C precision

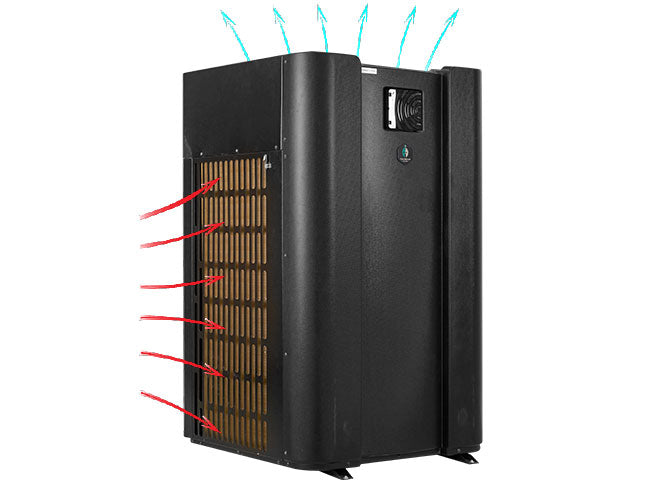

• Vertical Air Discharge — efficient airflow in a compact, space-saving layout

• Durable Construction — ABS front and galvanized steel rear cabinet built for harsh weather

• Quiet Operation — powerful performance without disruptive noise

• Eco-Friendly R32 Refrigerant — reduced environmental impact

Smart Wi-Fi Control – Heat Your Pool From Anywhere

Get a FREE Custom Pool Heating Quote in Minutes!

Finding the perfect heating solution for your pool is quick and easy. Just share a few details with us, and the Waternex Australia team will create a personalized plan tailored to your needs—all for FREE.

Get Your FREE Custom Quote Now!

Enjoy a warm, inviting pool without any hassle or cost to get started!

Technical Specifications — Lux-V 24kW (GLV-24)

Performance (Air 27 °C / Water 26 °C / Humidity 80%)

• Heating Capacity: 6.2–24.0 kW

• C.O.P.: 14.5–6.8

Performance (Air 15 °C / Water 26 °C / Humidity 70%)

• Heating Capacity: 4.8–17.5 kW

• C.O.P.: 7.5–4.8

Construction & Components

• Operating Air Temperature: –15 °C to 43 °C

• Compressor: Mitsubishi or Panasonic Rotary/Inverter

• Heat Exchanger: Titanium

• Casing: ABS front panel + galvanized steel rear panel

• Power Supply: 220–240 V~/1Ph/50Hz

• Electrical Connection: 15A hardwired

• Rated Input Power: 0.44–3.53 kW

• Max Rated Input Power: 4.77 kW

• Running Current at 100 %: 16.21 A

• Sound Pressure (1 m): 45–56 dB(A)

• Sound Pressure (10 m): 17–28 dB(A)

• Water Flow: 167 L/min

• Water Connection: 50 mm

• Net Weight: 115 kg

• Unit Size: 774 × 796 × 1267 mm

What’s Included

• 1 × Guardian Lux-V 24kW Pool Heat Pump (GLV-24)

• 1 × Intelligent LCD Touch Controller

• 1 × User Manual & Quick-Start Guide

• 1 × Warranty Information Pack

Applications

• Large residential pools

• Swim spas and aquatic pools

• Year-round heating and cooling, with cold-climate performance down to –15 °C

Downloads

Guardian Lux-V Brochure

Guardian Lux-V User Manual
