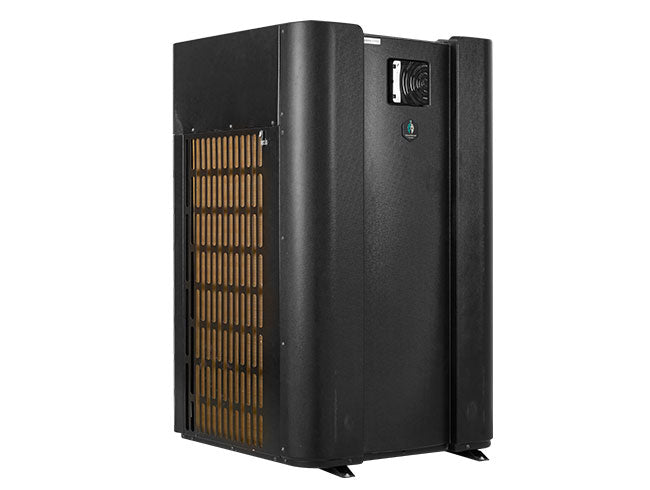

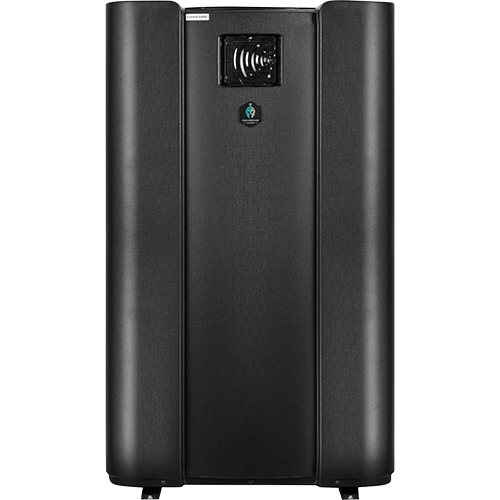

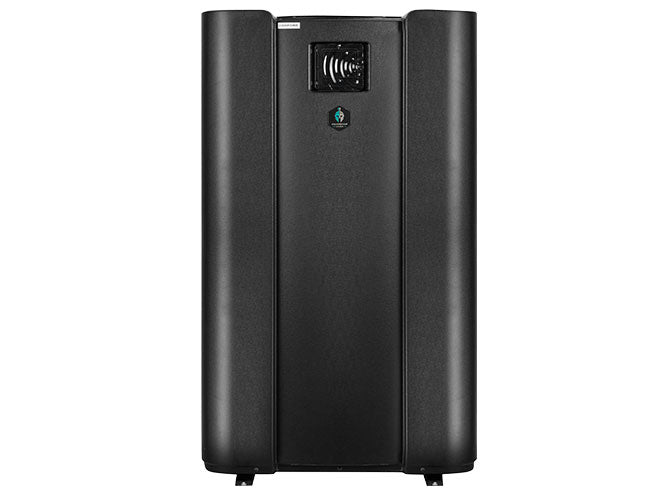

Maximum output for large residential, commercial, and resort pools. The Guardian Lux-V 32kW 3-Phase is the powerhouse of the Lux-V range, delivering exceptional heating and cooling capacity with full DC inverter technology and dependable operation down to –15 °C. Designed with vertical air discharge and a reinforced ABS/steel cabinet, this model is perfect where high performance and durability are essential.

With an industry-leading warranty and full Australian service support, the Lux-V 32kW 3-Phase provides reliable, energy-efficient pool heating in even the harshest climates.

Why Choose the Lux-V?

• C.O.P. up to 14.5 — superior efficiency for significantly reduced operating costs

• Unbeatable Warranty & Local Support — 25 years on titanium heat exchanger, 5 years on compressor, full Australian service

• Cold Climate Ready — consistent performance down to –15 °C with automatic rapid defrost

• DC Full Inverter Technology — Mitsubishi/Panasonic inverter compressor, fans, and controls for smooth, efficient operation

• Heating & Cooling Function — versatile performance for year-round use

• Smart Controls — Wi-Fi enabled, with four modes and precise 0.1 °C LCD touchscreen control

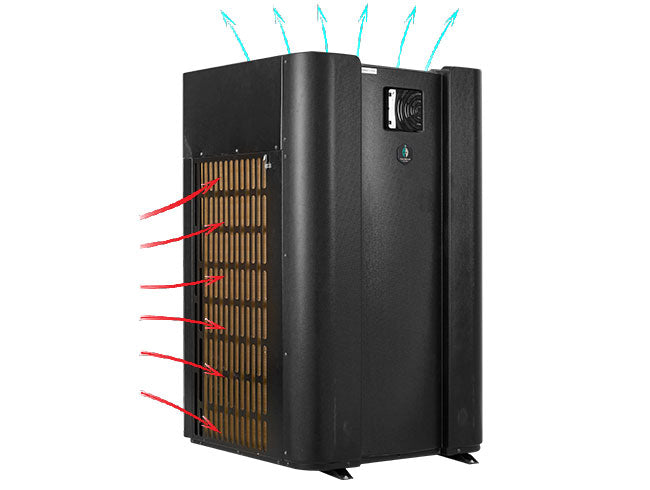

• Vertical Air Discharge — space-saving design with effective airflow

• Durable Construction — ABS front and galvanized steel rear panel designed to withstand harsh outdoor conditions

• Quiet Operation — excellent output with minimal noise levels

• Eco-Friendly R32 Refrigerant — environmentally responsible design

Smart Wi-Fi Control – Heat Your Pool From Anywhere

Get a FREE Custom Pool Heating Quote in Minutes!

Finding the perfect heating solution for your pool is quick and easy. Just share a few details with us, and the Waternex Australia team will create a personalized plan tailored to your needs—all for FREE.

Get Your FREE Custom Quote Now!

Enjoy a warm, inviting pool without any hassle or cost to get started!

Technical Specifications — Lux-V 32kW (GLV-32T, 3-Phase)

Performance (Air 27 °C / Water 26 °C / Humidity 80%)

• Heating Capacity: 8.0–32.0 kW

• C.O.P.: 14.5–6.7

Performance (Air 15 °C / Water 26 °C / Humidity 70%)

• Heating Capacity: 6.0–23.5 kW

• C.O.P.: 7.5–4.8

Construction & Components

• Operating Air Temperature: –15 °C to 43 °C

• Compressor: Mitsubishi or Panasonic Rotary/Inverter

• Heat Exchanger: Titanium

• Casing: ABS front panel + galvanized steel rear panel

• Power Supply: 380–415 V~/3Ph/50Hz

• Electrical Connection: 3-Phase hardwired

• Rated Input Power: 0.60–5.10 kW

• Max Rated Input Power: 7.0 kW

• Running Current at 100 %: 12–14 A (3-Phase load)

• Sound Pressure (1 m): 47–58 dB(A)

• Sound Pressure (10 m): 20–31 dB(A)

• Water Flow: 250 L/min

• Water Connection: 50 mm

• Net Weight: 135 kg

• Unit Size: 774 × 796 × 1267 mm

What’s Included

• 1 × Guardian Lux-V 32kW 3-Phase Pool Heat Pump (GLV-32T)

• 1 × Intelligent LCD Touch Controller

• 1 × User Manual & Quick-Start Guide

• 1 × Warranty Information Pack

Applications

• Large residential pools

• Swim spas and aquatic facilities

• Commercial and resort pools

• Year-round heating and cooling with cold-climate performance down to –15 °C
