Guardian – Leading the Way in Australian Pool Heating

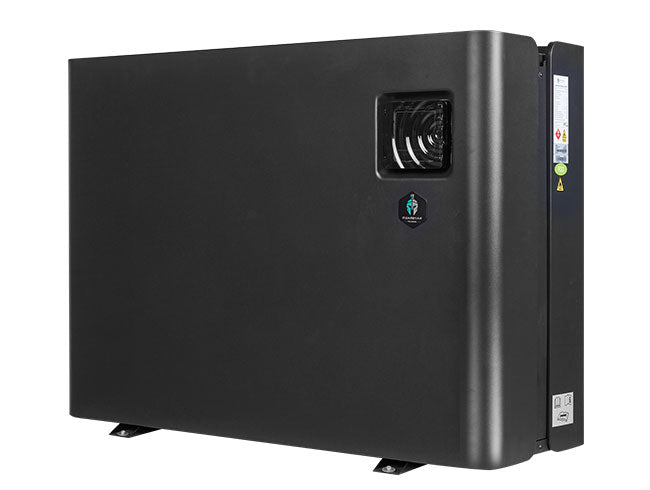

High output and premium efficiency for larger family pools. The Guardian Platinum 17kW is part of the flagship Platinum Series, designed with the latest full DC inverter technology and a unique dual vertical air discharge system that vents from both the top and bottom for superior airflow, higher efficiency, and more installation flexibility.

With its matte-finished metal cabinet, whisper-quiet operation, and built-in Wi-Fi smart controls, the Platinum 17kW is engineered for those who want reliable, energy-efficient heating and cooling all year round. Supported by an industry-leading warranty and full Australian service, it delivers powerful performance with the lowest operating costs in its class.

Why Choose the Platinum Series?

• C.O.P. up to 16.2 — exceptional efficiency for reduced running costs

• Unbeatable Warranty & Local Support — 25 years on titanium heat exchanger, 5 years on compressor, full Australian service

• High Performance Series — inverter-driven compressor with dual vertical air discharge for better airflow and efficiency

• Cold Climate Ready — stable operation down to –15 °C with auto defrost

• Heating & Cooling Function — dependable pool comfort in any season

• Smart Controls — Wi-Fi connectivity, 4 operating modes, and LCD touchscreen with 0.1 °C precision

• Durable Metal Cabinet — sleek, matte-finished casing for strength and style

• Quiet Operation — smooth, low-noise performance

• Eco-Friendly R32 Refrigerant — environmentally responsible heating

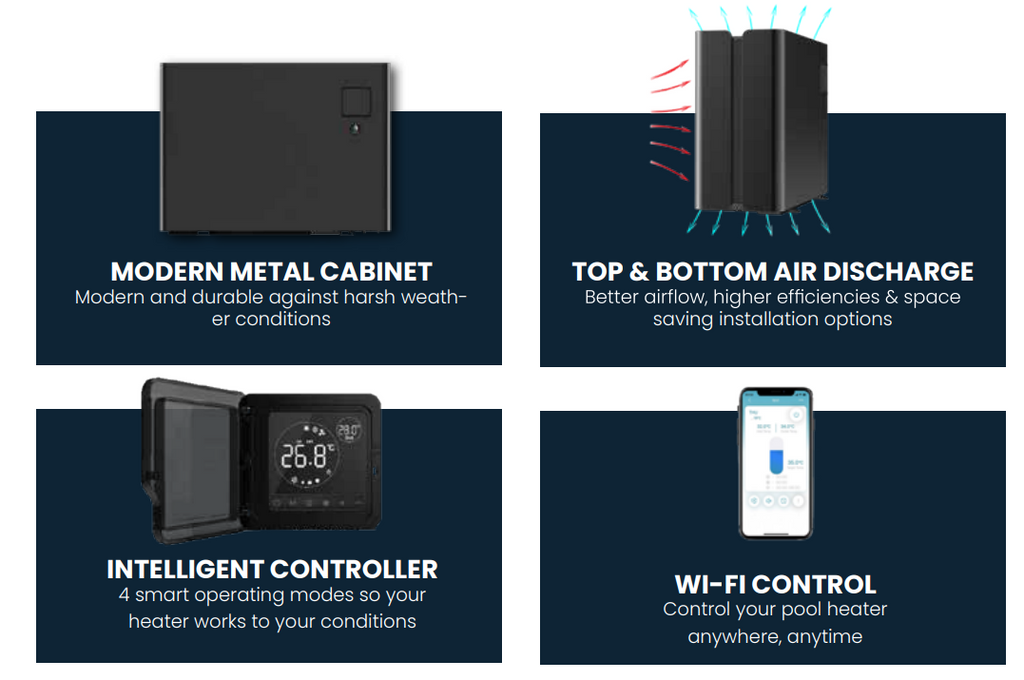

Smart Wi-Fi Control – Heat Your Pool From Anywhere

Get a FREE Custom Pool Heating Quote in Minutes!

Finding the perfect heating solution for your pool is quick and easy. Just share a few details with us, and the Waternex Australia team will create a personalized plan tailored to your needs—all for FREE.

Get Your FREE Custom Quote Now!

Enjoy a warm, inviting pool without any hassle or cost to get started!

Technical Specifications — Platinum 17kW (GP-17)

Performance (Air 27 °C / Water 26 °C / Humidity 80%)

• Heating Capacity: 4.0–17.5 kW

• C.O.P.: 16.2–7.2

Performance (Air 15 °C / Water 26 °C / Humidity 70%)

• Heating Capacity: 3.1–12.8 kW

• C.O.P.: 7.8–5.2

Construction & Components

• Operating Air Temperature: –15 °C to 43 °C

• Compressor: Mitsubishi Rotary/Inverter

• Heat Exchanger: Titanium

• Casing: Matte-finished metal cabinet

• Power Supply: 220–240 V~/1Ph/50Hz

• Electrical Connection: 15A hardwired

• Rated Input Power: 0.25–2.43 kW

• Max Rated Input Power: 3.2 kW

• Running Current at 100 %: 11.67 A

• Sound Pressure (1 m): 44–52 dB(A)

• Sound Pressure (10 m): 16–24 dB(A)

• Water Connection: 40 mm

• Net Weight: 122 kg

• Unit Size: 1330 × 548 × 930 mm

What’s Included

• 1 × Guardian Platinum 17kW Heat Pump (GP-17)

• 1 × Intelligent LCD Touch Controller

• 1 × User Manual & Quick-Start Guide

• 1 × Warranty Information Pack

Applications

• Medium to large residential pools

• Swim spas

• Year-round heating and cooling with cold-climate performance down to –15 °C

Downloads

Guardian Platinum Brochure

Guardian Platinum User Manual
