Guardian – Leading the Way in Australian Pool Heating

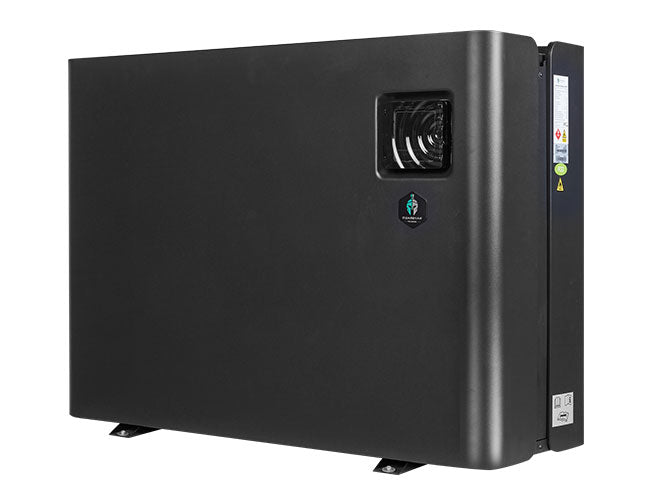

Heavy-duty performance for large pools and swim spas. The Guardian Platinum 25kW is part of the flagship Platinum Series, designed with advanced full DC inverter technology and a unique dual vertical air discharge that releases air from both the top and bottom of the unit. This design improves airflow, efficiency, and installation flexibility, making it an excellent choice for demanding pool owners.

With a modern matte-finished metal cabinet, smart Wi-Fi controls, and whisper-quiet operation, the Platinum 25kW offers premium performance with style and reliability. Supported by an industry-leading warranty and local Australian service, it delivers year-round heating and cooling with some of the lowest operating costs available.

Why Choose the Platinum Series?

• C.O.P. up to 16.5 — outstanding efficiency with lower energy bills

• Unbeatable Warranty & Local Support — 25 years on titanium heat exchanger, 5 years on compressor, full Australian service

• High Performance Series — dual vertical air discharge design for maximum airflow and energy savings

• Cold Climate Ready — stable operation in temperatures down to –15 °C with auto defrost

• Heating & Cooling Function — enjoy dependable comfort year-round

• Smart Controls — Wi-Fi connectivity, 4 smart modes, and LCD touchscreen with 0.1 °C precision

• Durable Metal Cabinet — sleek matte-finish design built for Australian conditions

• Quiet Operation — low-noise output despite high performance

• Eco-Friendly R32 Refrigerant — efficient and environmentally friendly

Smart Wi-Fi Control – Heat Your Pool From Anywhere

Get a FREE Custom Pool Heating Quote in Minutes!

Finding the perfect heating solution for your pool is quick and easy. Just share a few details with us, and the Waternex Australia team will create a personalized plan tailored to your needs—all for FREE.

Get Your FREE Custom Quote Now!

Enjoy a warm, inviting pool without any hassle or cost to get started!

Technical Specifications — Platinum 25kW (GP-25)

Performance (Air 27 °C / Water 26 °C / Humidity 80%)

• Heating Capacity: 5.6–25.0 kW

• C.O.P.: 16.5–7.4

Performance (Air 15 °C / Water 26 °C / Humidity 70%)

• Heating Capacity: 4.2–19.9 kW

• C.O.P.: 8.0–5.2

Construction & Components

• Operating Air Temperature: –15 °C to 43 °C

• Compressor: Mitsubishi Rotary/Inverter

• Heat Exchanger: Titanium

• Casing: Matte-finished metal cabinet

• Power Supply: 220–240 V~/1Ph/50Hz

• Electrical Connection: Hardwired

• Rated Input Power: 0.34–3.38 kW

• Max Rated Input Power: 4.80 kW

• Running Current at 100 %: 15.57 A

• Sound Pressure (1 m): 44–53 dB(A)

• Sound Pressure (10 m): 16–25 dB(A)

• Water Connection: 40 mm

• Net Weight: 172 kg

• Unit Size: 1330 × 548 × 930 mm

What’s Included

• 1 × Guardian Platinum 25kW Heat Pump (GP-25)

• 1 × Intelligent LCD Touch Controller

• 1 × User Manual & Quick-Start Guide

• 1 × Warranty Information Pack

Applications

• Large residential swimming pools

• Swim spas and small commercial pools

• Year-round heating and cooling with reliable performance down to –15 °C

Downloads

Guardian Platinum Brochure

Guardian Platinum User Manual
