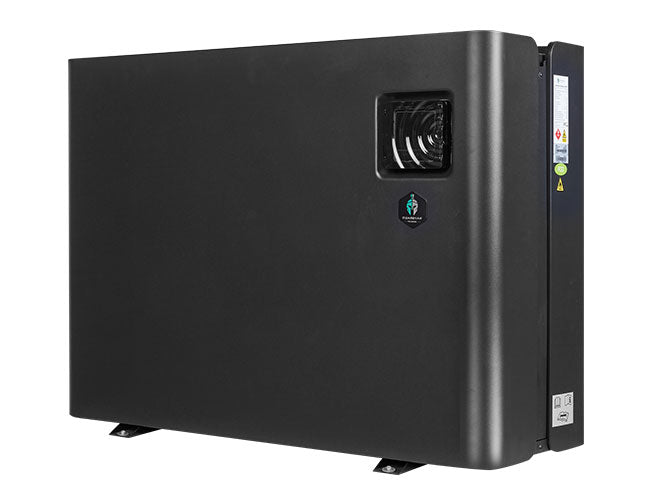

Guardian – Leading the Way in Australian Pool Heating

Maximum performance for extra-large residential and commercial pools. The Guardian Platinum 30kW is the powerhouse of the Platinum Series, engineered with advanced full DC inverter technology and a dual vertical air discharge system that pushes air from both the top and bottom. This unique design delivers superior airflow, higher efficiency, and greater installation flexibility for the most demanding applications.

With a sleek matte-finished metal cabinet, whisper-quiet operation, and built-in Wi-Fi controls, the Platinum 30kW combines strength with style. Backed by an industry-leading warranty and supported locally across Australia, it provides powerful, efficient, and reliable year-round heating and cooling with the lowest operating costs in its class.

Why Choose the Platinum Series?

• C.O.P. up to 16.1 — superior efficiency with reduced energy bills

• Unbeatable Warranty & Local Support — 25 years on titanium heat exchanger, 5 years on compressor, full Australian service

• High Performance Series — dual vertical air discharge for unmatched airflow and efficiency

• Cold Climate Ready — dependable heating down to –15 °C with automatic defrost

• Heating & Cooling Function — versatile year-round performance

• Smart Controls — Wi-Fi connectivity, four operating modes, and LCD touchscreen with 0.1 °C precision

• Durable Metal Cabinet — matte-finish construction built for long outdoor life

• Quiet Operation — strong output without disruptive noise

• Eco-Friendly R32 Refrigerant — environmentally conscious and efficient

Smart Wi-Fi Control – Heat Your Pool From Anywhere

Get a FREE Custom Pool Heating Quote in Minutes!

Finding the perfect heating solution for your pool is quick and easy. Just share a few details with us, and the Waternex Australia team will create a personalized plan tailored to your needs—all for FREE.

Get Your FREE Custom Quote Now!

Enjoy a warm, inviting pool without any hassle or cost to get started!

Technical Specifications — Platinum 30kW (GP-30)

Performance (Air 27 °C / Water 26 °C / Humidity 80%)

• Heating Capacity: 7.1–30.0 kW

• C.O.P.: 16.1–7.2

Performance (Air 15 °C / Water 26 °C / Humidity 70%)

• Heating Capacity: 5.0–23.5 kW

• C.O.P.: 7.6–5.1

Construction & Components

• Operating Air Temperature: –15 °C to 43 °C

• Compressor: Mitsubishi Rotary/Inverter

• Heat Exchanger: Titanium

• Casing: Matte-finished metal cabinet

• Power Supply: 220–240 V~/1Ph/50Hz

• Electrical Connection: Hardwired

• Rated Input Power: 0.44–4.17 kW

• Max Rated Input Power: 5.05 kW

• Running Current at 100 %: 21.4 A

• Sound Pressure (1 m): 44–55 dB(A)

• Sound Pressure (10 m): 16–27 dB(A)

• Water Connection: 40 mm

• Net Weight: 200 kg

• Unit Size: 1330 × 548 × 930 mm

What’s Included

• 1 × Guardian Platinum 30kW Heat Pump (GP-30)

• 1 × Intelligent LCD Touch Controller

• 1 × User Manual & Quick-Start Guide

• 1 × Warranty Information Pack

Applications

• Extra-large residential pools

• Swim spas and resort-style pools

• Light commercial and aquatic facilities

• Year-round heating and cooling, with cold-climate performance down to –15 °C
