Guardian – Leading the Way in Australian Pool Heating

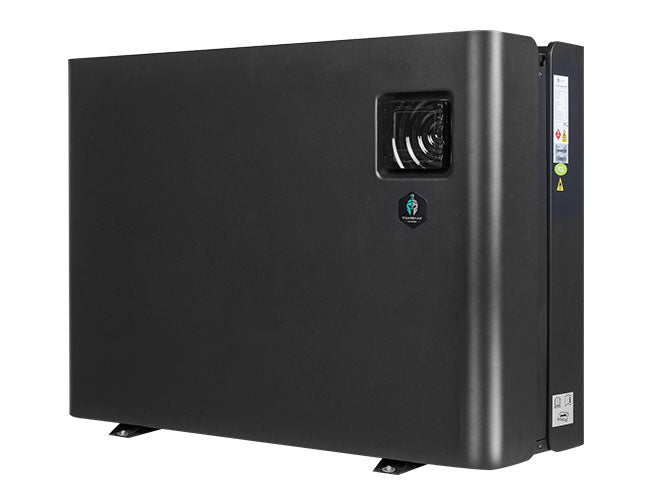

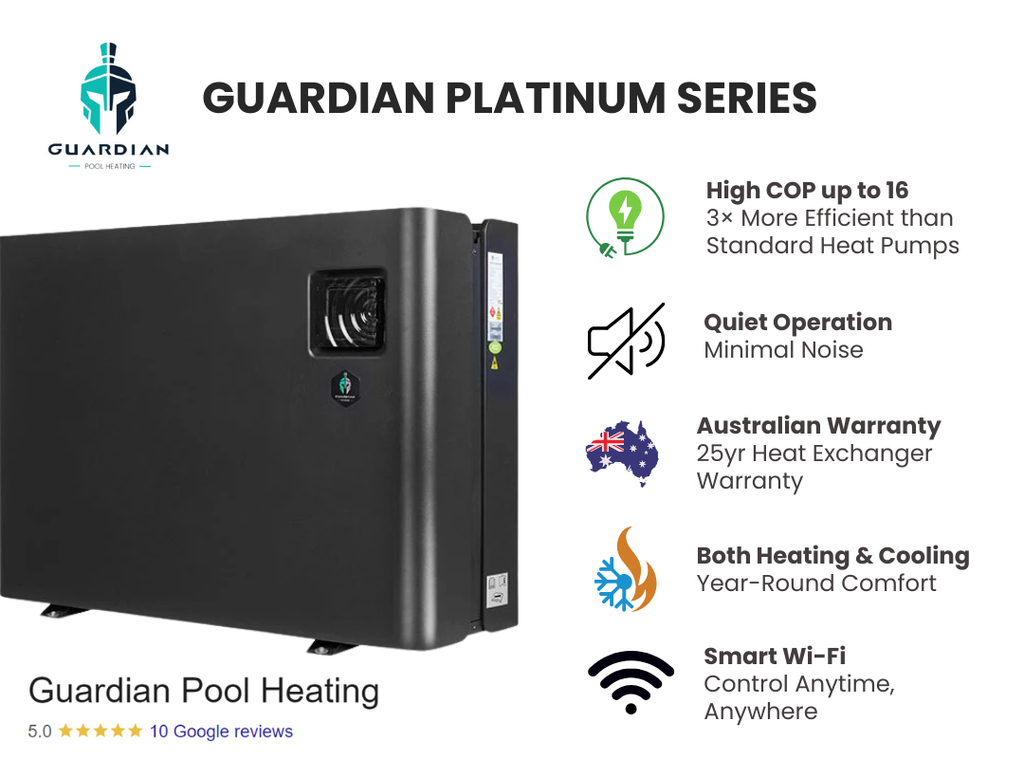

The premium choice for year-round swimming at the lowest running costs. The Guardian Platinum 9kW is part of the high-performance Platinum Series, engineered with full DC inverter technology and a unique vertical dual-discharge design that pushes air from both the top and bottom for better airflow, higher efficiency, and flexible installation.

With a sleek, matte-finished metal cabinet, whisper-quiet operation, and advanced smart controls, the Platinum 9kW is the ultimate heating solution for small pools and spas. Backed by an industry-leading warranty and full Australian service support, it offers unmatched value in performance and reliability.

Why Choose the Platinum Series?

• C.O.P. up to 16.1 — industry-leading efficiency, lower operating costs

• Unbeatable Warranty & Local Support — 25 years on titanium heat exchanger, 5 years on compressor, full Australian service

• High Performance Series — advanced inverter system with dual vertical air discharge for greater airflow and installation options

• Cold Climate Ready — reliable heating down to –15 °C with automatic defrost

• Heating & Cooling Function — versatile all-season pool comfort

• Smart Controls — Wi-Fi connectivity, 4 smart modes, and LCD touchscreen with 0.1 °C precision

• Modern, Durable Design — matte-finished metal cabinet built for Australian conditions

• Quiet Operation — low noise levels despite strong performance

• Eco-Friendly R32 Refrigerant — efficient and environmentally conscious

Smart Wi-Fi Control – Heat Your Pool From Anywhere

Get a FREE Custom Pool Heating Quote in Minutes!

Finding the perfect heating solution for your pool is quick and easy. Just share a few details with us, and the Waternex Australia team will create a personalized plan tailored to your needs—all for FREE.

Get Your FREE Custom Quote Now!

Enjoy a warm, inviting pool without any hassle or cost to get started!

Technical Specifications — Platinum 9kW (GP-9)

Performance (Air 27 °C / Water 26 °C / Humidity 80%)

• Heating Capacity: 2.7–9.5 kW

• C.O.P.: 16.1–7.1

Performance (Air 15 °C / Water 26 °C / Humidity 70%)

• Heating Capacity: 1.8–7.5 kW

• C.O.P.: 7.6–5.1

Construction & Components

• Operating Air Temperature: –15 °C to 43 °C

• Compressor: Mitsubishi Rotary/Inverter

• Heat Exchanger: Titanium

• Casing: Matte-finished metal cabinet

• Power Supply: 220–240 V~/1Ph/50Hz

• Electrical Connection: 10A plug

• Rated Input Power: 0.17–1.34 kW

• Max Rated Input Power: 1.94 kW

• Running Current at 100 %: 6.48 A

• Sound Pressure (1 m): 42–47.5 dB(A)

• Sound Pressure (10 m): 14–19.5 dB(A)

• Water Connection: 40 mm

• Net Weight: 82 kg

• Unit Size: 1074 × 436 × 804 mm

What’s Included

• 1 × Guardian Platinum 9kW Heat Pump (GP-9)

• 1 × Intelligent LCD Touch Controller

• 1 × User Manual & Quick-Start Guide

• 1 × Warranty Information Pack

Applications

• Small residential pools

• Spas and plunge pools

• Year-round pool heating and cooling, with high efficiency and reliable cold-climate operation
