Efficient, smart and reliable heating and cooling for pools up to 70,000L.

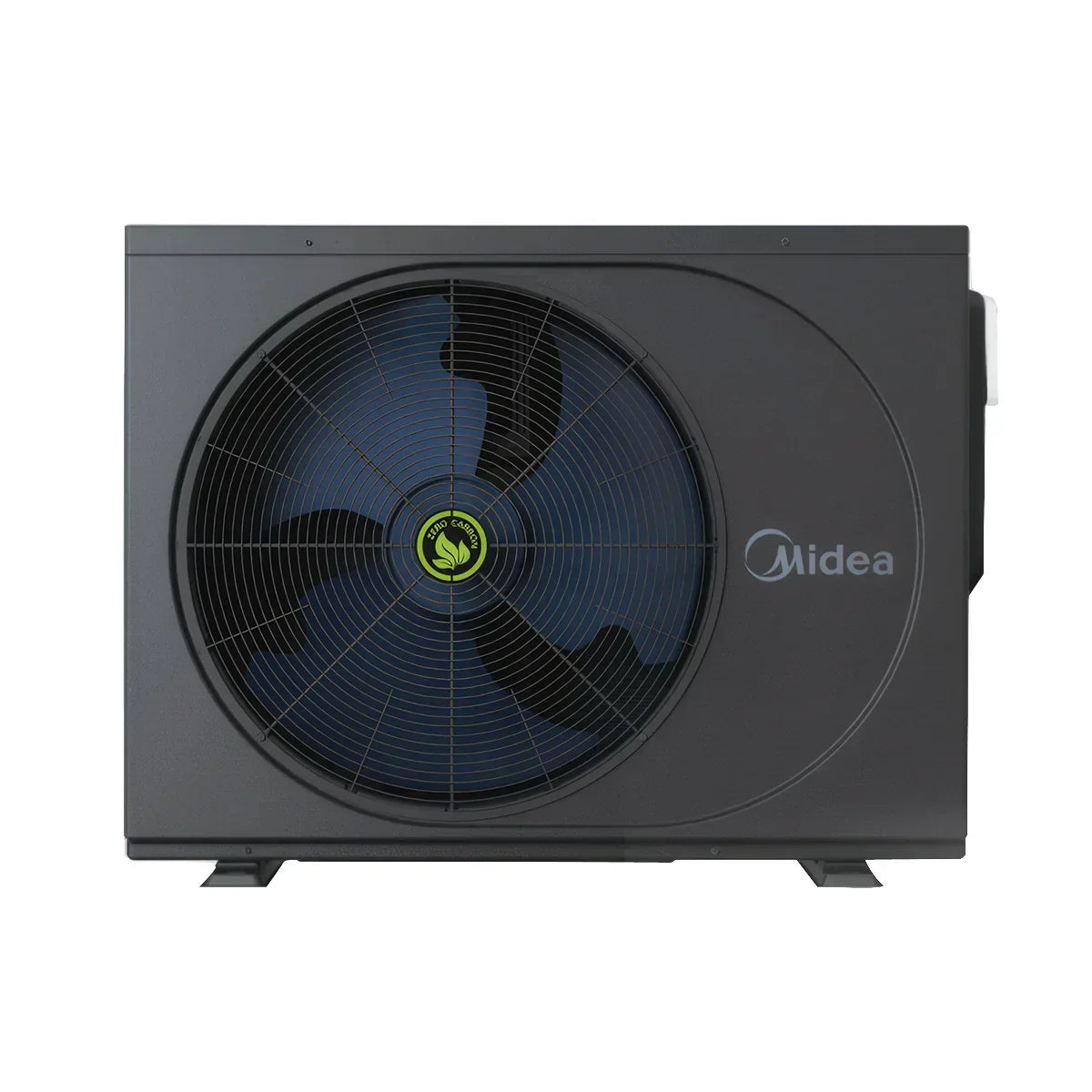

The Midea M Series Pool Heat Pump is designed to extend your swimming season while keeping running costs low. Using advanced renewable energy technology, it captures free heat energy from the air to maintain your pool at the perfect temperature. Quiet, efficient, and smart-control ready, it’s an excellent choice for residential pools of all common sizes.

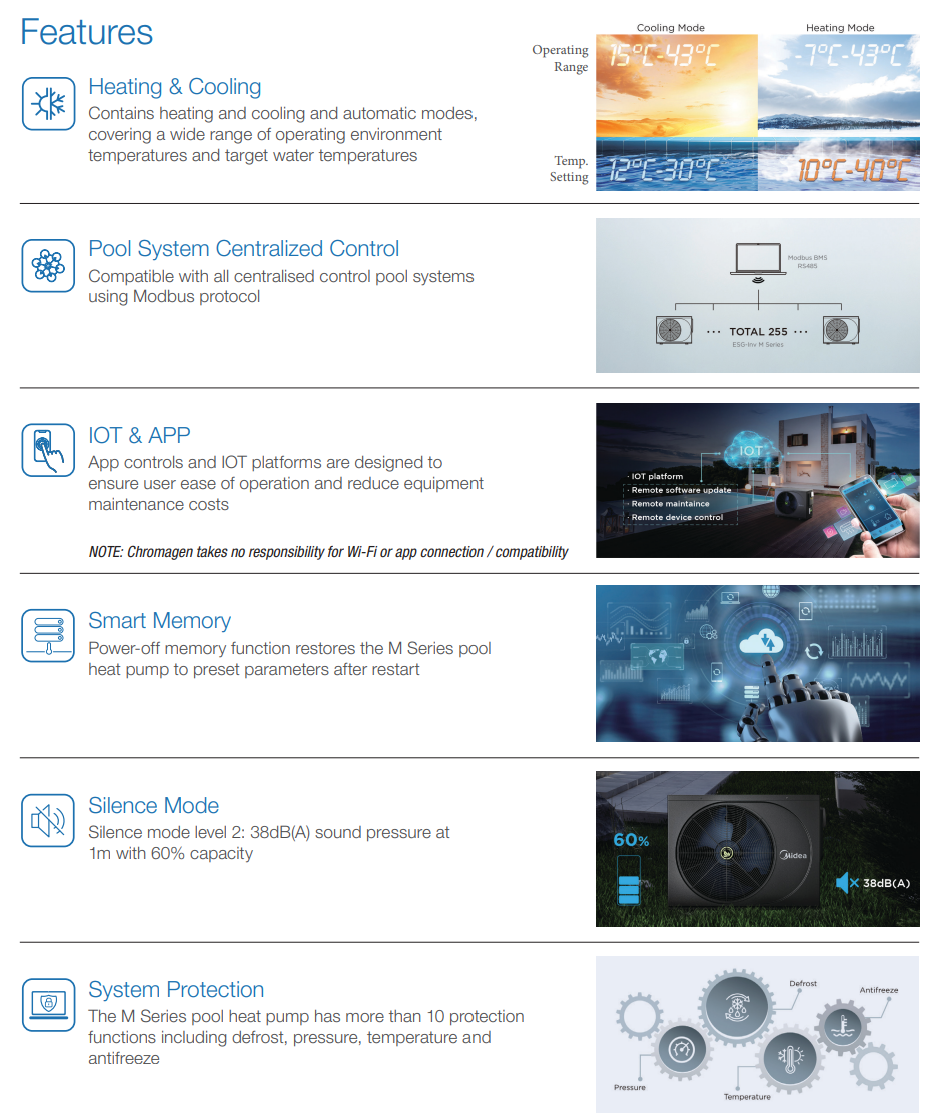

Highlights

• Heating & Cooling: Built-in heating, cooling, and automatic modes for a wide range of environments.

• Wi-Fi & App Control: Compatible with IoT platforms and app-based controls for convenience.

• Centralised Pool Control: Modbus protocol compatibility for integration with centralised pool management systems.

• Silence Mode: Operates as low as 38–40 dB(A) at 1m with reduced capacity.

• Smart Memory: Power-off memory restores preset parameters after restart.

• System Protection: Over 10 safety functions, including defrost, high/low pressure, temperature, and antifreeze protection.

Get a FREE Custom Pool Heating Quote in Minutes!

Finding the perfect heating solution for your pool is quick and easy. Just share a few details with us, and the Waternex Australia team will create a personalized plan tailored to your needs—all for FREE.

Get Your FREE Custom Quote Now!

Enjoy a warm, inviting pool without any hassle or cost to get started!

Construction

• Built with a high-efficiency compressor and durable heat exchanger.

• R32 refrigerant for reduced environmental impact.

• Designed for reliable performance in a wide range of operating conditions.

Applications

• Suitable for residential pools up to 70,000L (depending on climate/location).

• Heating and cooling modes for year-round use.

• Can be paired with spas up to 3,000L.

Specifications (MSC-200D2N8-A)

• Power supply: 220–240V / 50Hz

• Boost heating capacity: 21.8 kW (COP 5.2)

• Heating capacity: 18.8 kW

• Boost heating capacity at lower temp: 17.0 kW (COP 3.6)

• Cooling capacity: 8.6 kW (EER 2.6)

• Max power input: 5.3 kW

• Max current: 23 A

• Minimum circuit breaker: 25 A

• Refrigerant type: R32

• Sound pressure level: 54 dB(A) at 1m

• Silence mode level 2: 40 dB(A) at 1m (approx. 60% capacity)

• Water flow rate: 8.3 m³/h

• Water pressure drop: 33 kPa

• Water connection: 50 mm

Heating Performance (Initial Heat-Up Estimates to 27°C Pool Temp)

• Adelaide: up to 41 hrs (70,000L)

• Brisbane: up to 26 hrs (70,000L)

• Canberra: up to 49 hrs (70,000L)

• Hobart: up to 57 hrs (70,000L)

• Melbourne: up to 51 hrs (70,000L)

• Perth: up to 37 hrs (70,000L)

• Sydney: up to 38 hrs (70,000L)
  (Based on October startup, covered pool, typical incoming cold water temperature.)

Warranty

• Residential: 5 years compressor & heat exchanger

• Commercial: 2 years compressor & heat exchanger

What’s Included

• 1 × Midea M Series MSC-200D2N8-A Pool Heat Pump

• Installation and user manual

• Factory warranty coverage

Downloads

Midea Heat Pump Brochure

Have Questions?

Call our friendly team at 1300 930 847 or email us at sales@waternex.com.au for expert advice.
