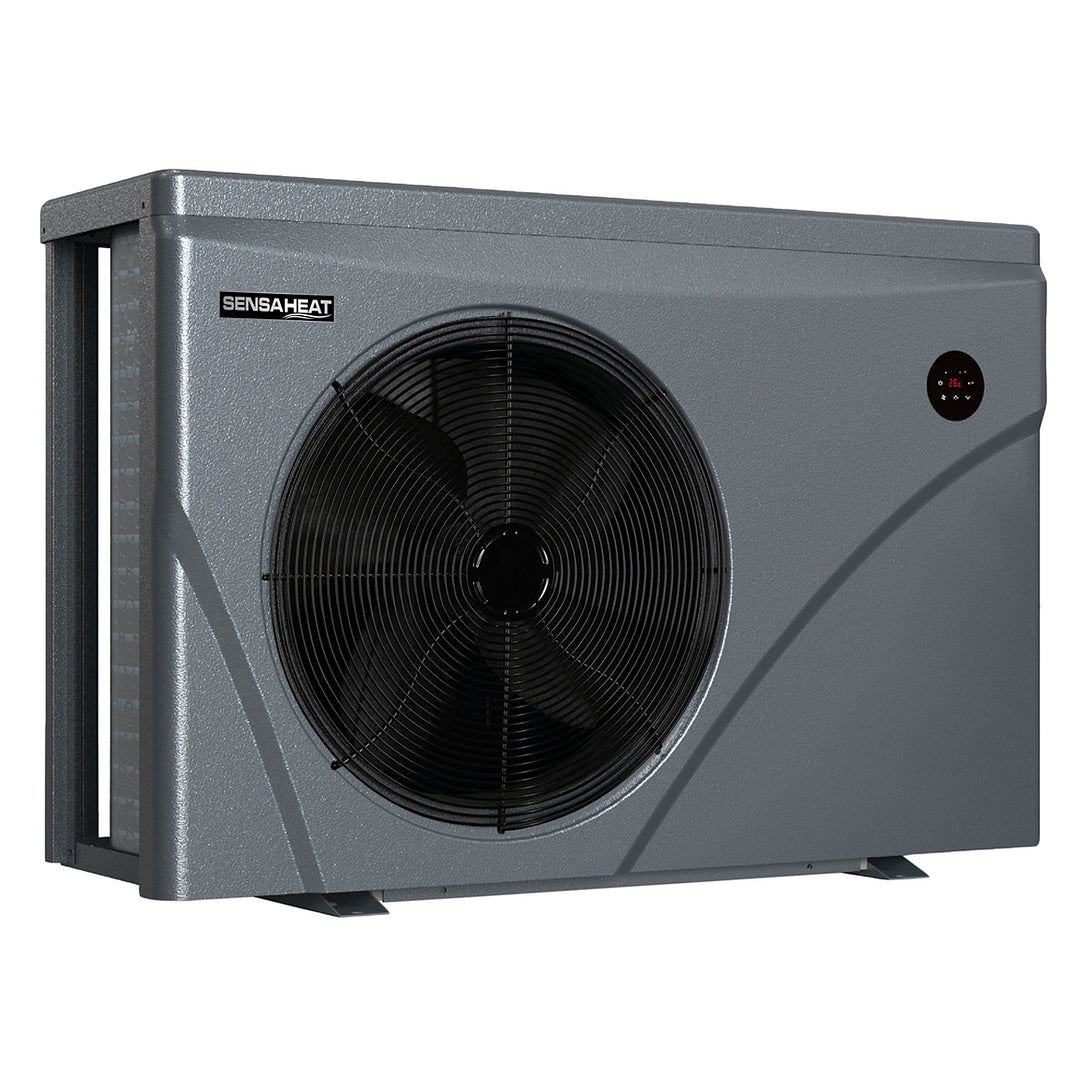

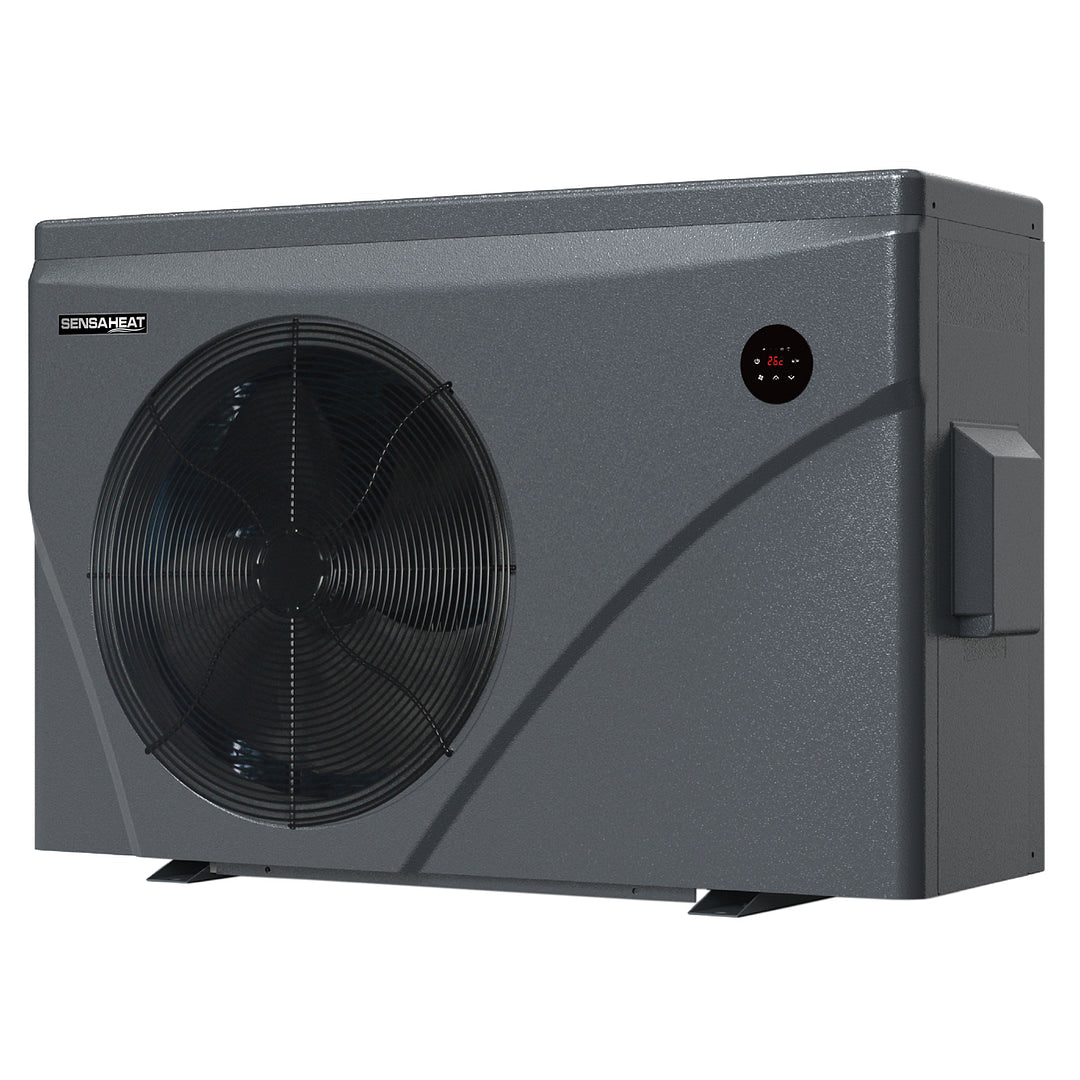

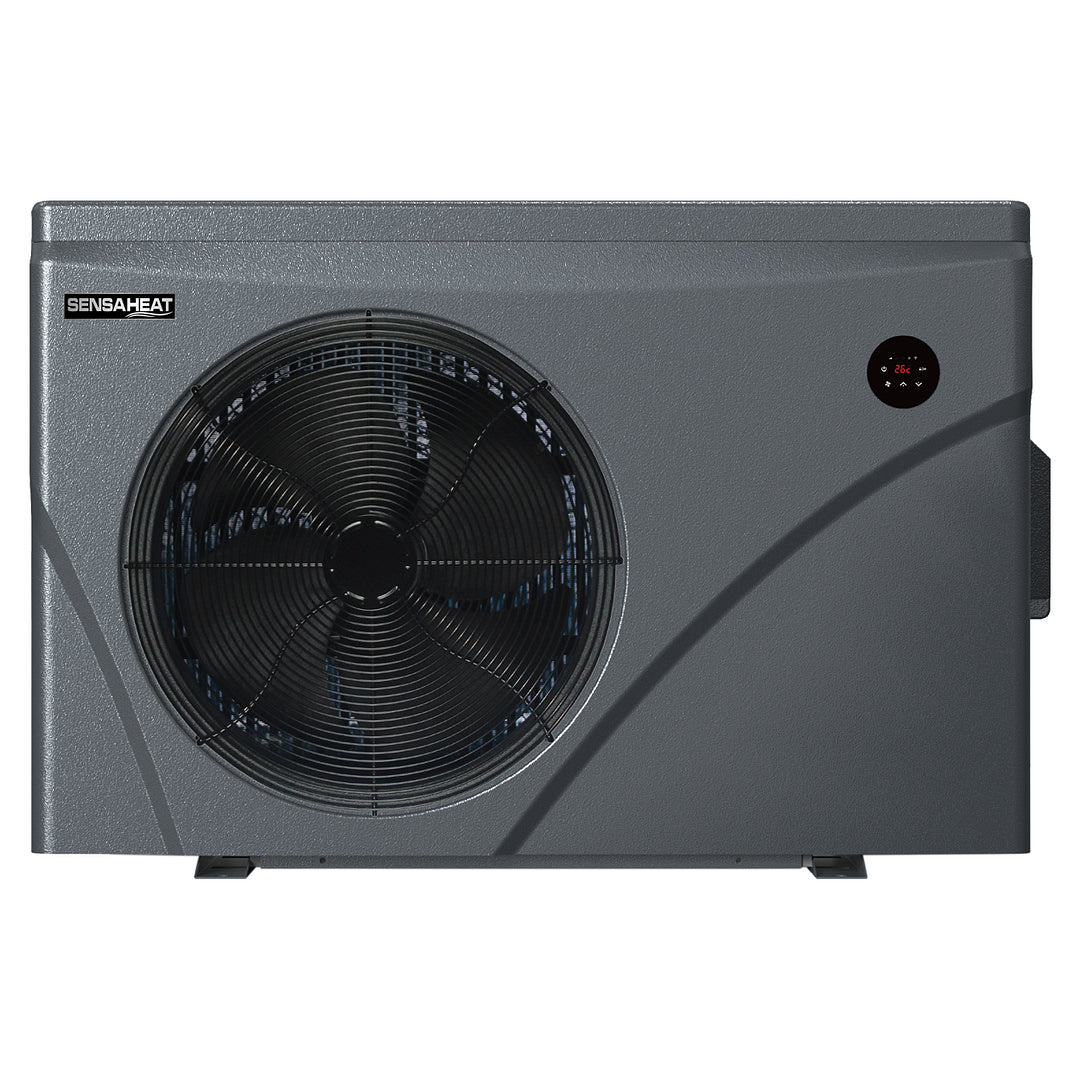

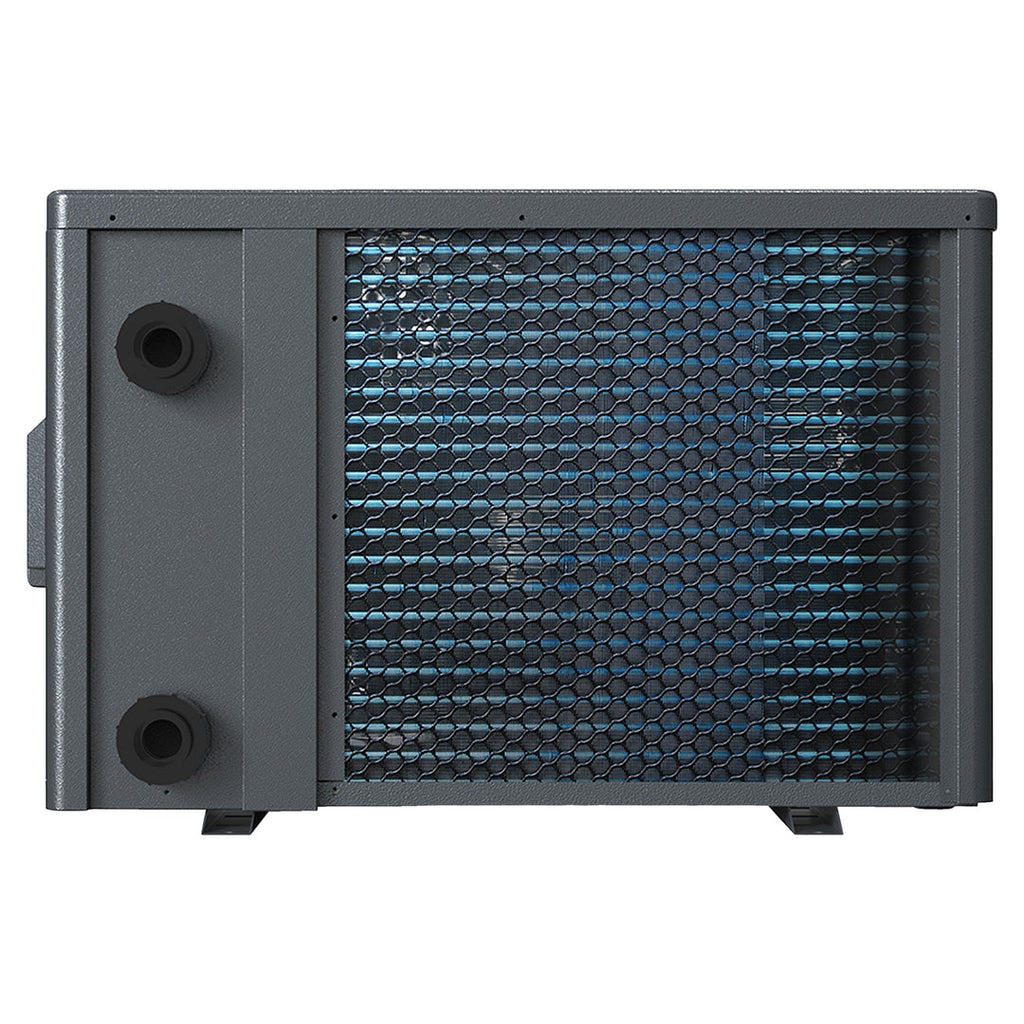

The SensaHeat ES Series 13kW is a reliable and energy-efficient inverter heat pump designed to heat and cool pools and spas. With advanced inverter technology, quiet operation, and eco-friendly refrigerant, it provides a cost-effective way to extend your swimming season. Designed for Australian and New Zealand conditions, this heat pump delivers powerful performance while keeping energy consumption low.

Highlights

• 13kW Heating Power – Efficient pool and spa heating with a high Coefficient of Performance (COP) up to 10.8
• DC Inverter Technology – Soft start reduces startup power demand by up to 70 percent, lowering energy costs
• Mitsubishi DC Compressor – Energy-efficient and reliable operation for long-term performance
• Super Quiet Operation – Noise levels as low as 43.9dB at 1m, ensuring minimal disruption
• Reverse Cycle Heating & Cooling – Heat your pool in cooler months and cool it in summer
• Eco-Friendly R32 Refrigerant – Lower environmental impact with a GWP of 675 (30 percent of R410A)
• Titanium Heat Exchanger – Corrosion-resistant for durability, backed by a 25-year warranty
• Wi-Fi Enabled – Remote control and monitoring via smartphone
• Simple Touch Control – User-friendly digital display for easy adjustments

Unmatched Heating & Cooling Power

• Reverse cycle technology keeps your pool warm in winter and cool in summer
• Ideal for both residential and commercial pools and spas

Super Quiet Performance

• Engineered for whisper-quiet operation
• Noise levels as low as 46.9 dB at 1m – similar to a household refrigerator
• No loud disruptions, perfect for peaceful backyard settings

Energy-Saving Inverter Technology

• Soft start inverter reduces startup power demand by up to 70%
• COP of up to 10.8, meaning more heat output per unit of energy consumed
• Adjusts power usage based on demand, reducing running costs

Eco-Friendly & Future-Proof

• Runs on R32 refrigerant, which has a global warming potential (GWP) of just 675
• 70% lower impact than older refrigerants like R410A
• Helps reduce energy consumption and operates more efficiently

Smart Wi-Fi Control – Heat Your Pool From Anywhere

• Built-in Wi-Fi allows remote control via a smartphone app
• Adjust temperature settings from anywhere
• Set schedules for automated heating and cooling

Specifications

• Model: HPES13
• Heating Capacity (Air 27°C/Water 27°C, Humidity 80%): 13.0kW
• COP Range: 10.8 – 6.3
• Average COP at 50% Speed: 9.2
• Heating Capacity (Air 15°C/Water 26°C, Humidity 70%): 9.0kW
• COP Range: 6.2 – 4.5
• Cooling Capacity: 5.0kW
• Reverse Cycle: Standard
• Operating Air Temperature: 0°C – 43°C
• Heating Temperature Range: 18°C – 40°C
• Cooling Temperature Range: 12°C – 30°C
• Wi-Fi: Built-in
• Heat Exchanger: Titanium
• Power Supply: 230V 1Ph
• Electrical Connection: 15A Plug
• Rated Input Power: 0.41 – 2.01kW
• Rated Input Current: 1.76 – 8.70A
• Maximum Input Current: 12.5A
• Sound Level at 1m: 43.9 – 54.0 dB(A)
• Sound Level at 10m: 23.9 – 34.0 dB(A)
• Advised Water Flow: 60 – 80 L/min
• Water Connection: 40mm

Dimensions and Weight

• Net Weight: 49kg
• Net Dimensions (L x W x H): 903 x 349 x 654mm

Warranty

• Heat Exchanger: 25 years
• Compressor: 3 years

What's Included

• 1 x SensaHeat ES Series 13kW Heat Pump
• 1 x User Manual

Downloads

SensaHeat ES User Guide

ES Series Data Sheet
