The SENSAHEAT PI Series 13.0kW Heat Pump is a smart choice for small to mid-sized pools and spas in Australia and New Zealand. Designed with advanced inverter technology and a patented back-discharge system, this unit delivers energy-efficient performance with significantly reduced noise levels—perfect for quiet backyard settings.

Highlights

• Model Number: SH-HPPI13

• 13.0kW inverter pool and spa heat pump

• Inverter technology for improved energy efficiency

• Very quiet operation using back-discharge airflow

• Reverse cycle functionality – heating and cooling

• Touchscreen control for easy use

• Wi-Fi enabled for remote access and management

• Titanium heat exchanger for strong corrosion resistance

• Mitsubishi DC compressor for consistent, long-lasting performance

• Purpose-built for the Australian and New Zealand environment

• Available in sizes from 9kW up to 35kW

Construction & Features

• Quiet operation with back-discharge fan design

• Plug-in connection using 15A C-38 plug

• 3m lead included

• IPX4 weather-resistant for outdoor installation

• 40mm union connection fits standard plumbing

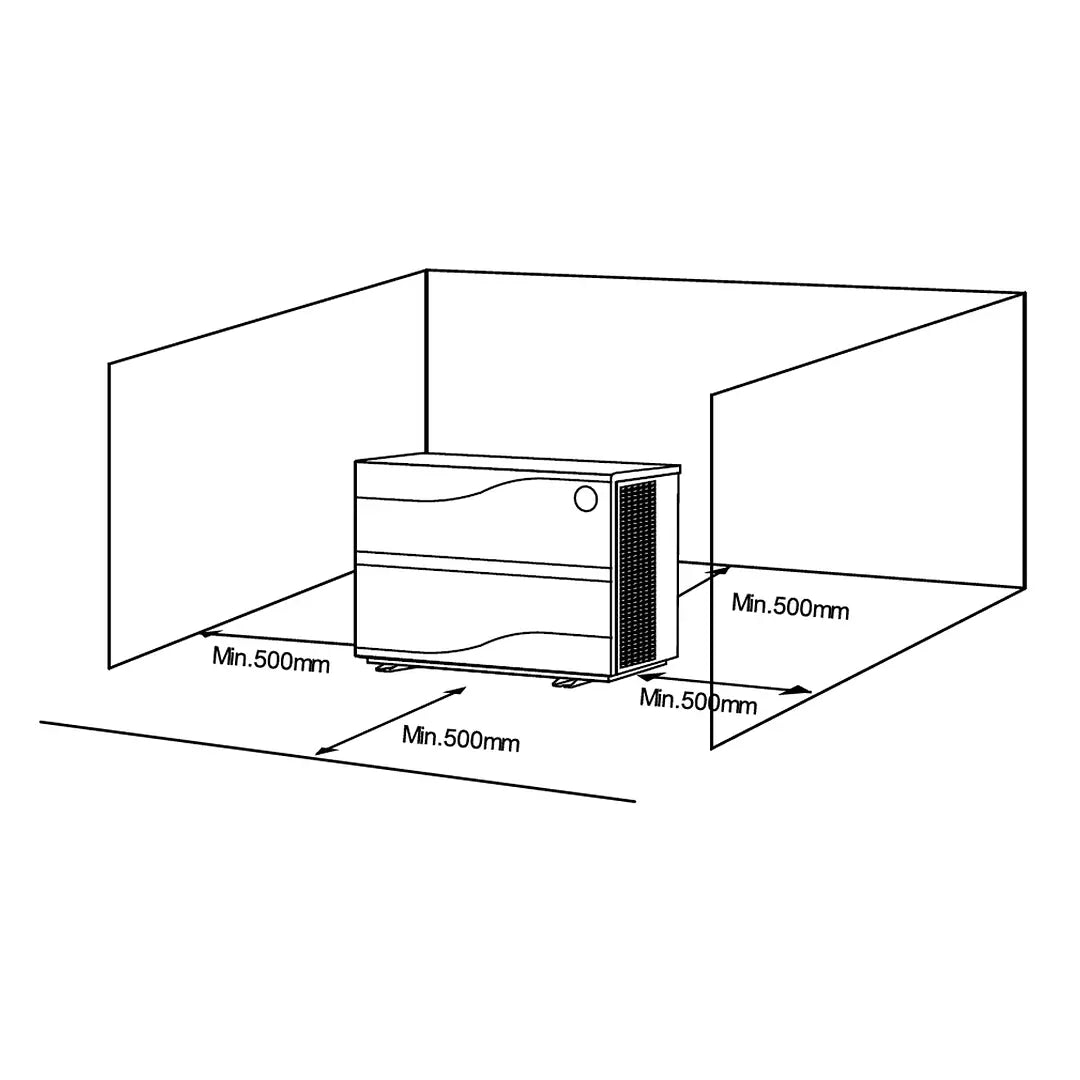

• Installation clearance: 500mm front, back, and both sides

Applications

• Ideal for small to medium residential pools

• Compatible with spas and plunge pools

• All-season heating and cooling capability

• Suitable for new or replacement installations

Specifications

Heat Pump Performance

• Heating Capacity: 13.0kW

• Maximum Input Current: 12A

• Union Size: 40mm

• Plug Type: 15A C-38

• Lead Length: 3m

• IP Rating: IPX4

Dimensions & Weight

• Length: 890mm

• Width: 440mm

• Height: 658mm

• Weight: 59kg

What’s Included

• 1 x SENSAHEAT PI Series 13.0kW Heat Pump (Model SH-HPPI13)

• Touchscreen controller

• User and installation manual

• Free technical support from Spa-Craft over the phone

Warranty

• 25 Years – Titanium heat exchanger

• 5 Years – Compressor

Downloads

SensaHeat PI Series Datasheet
