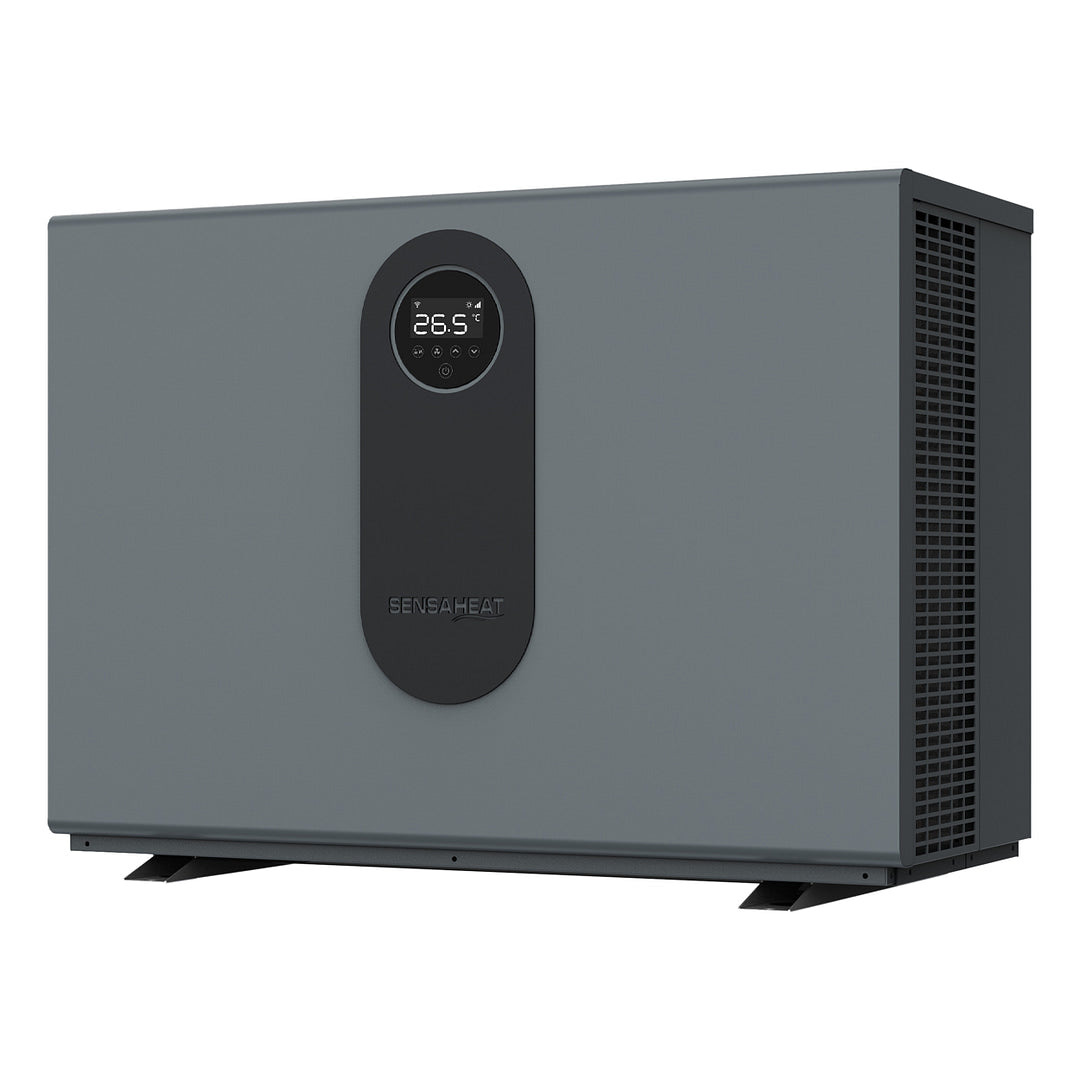

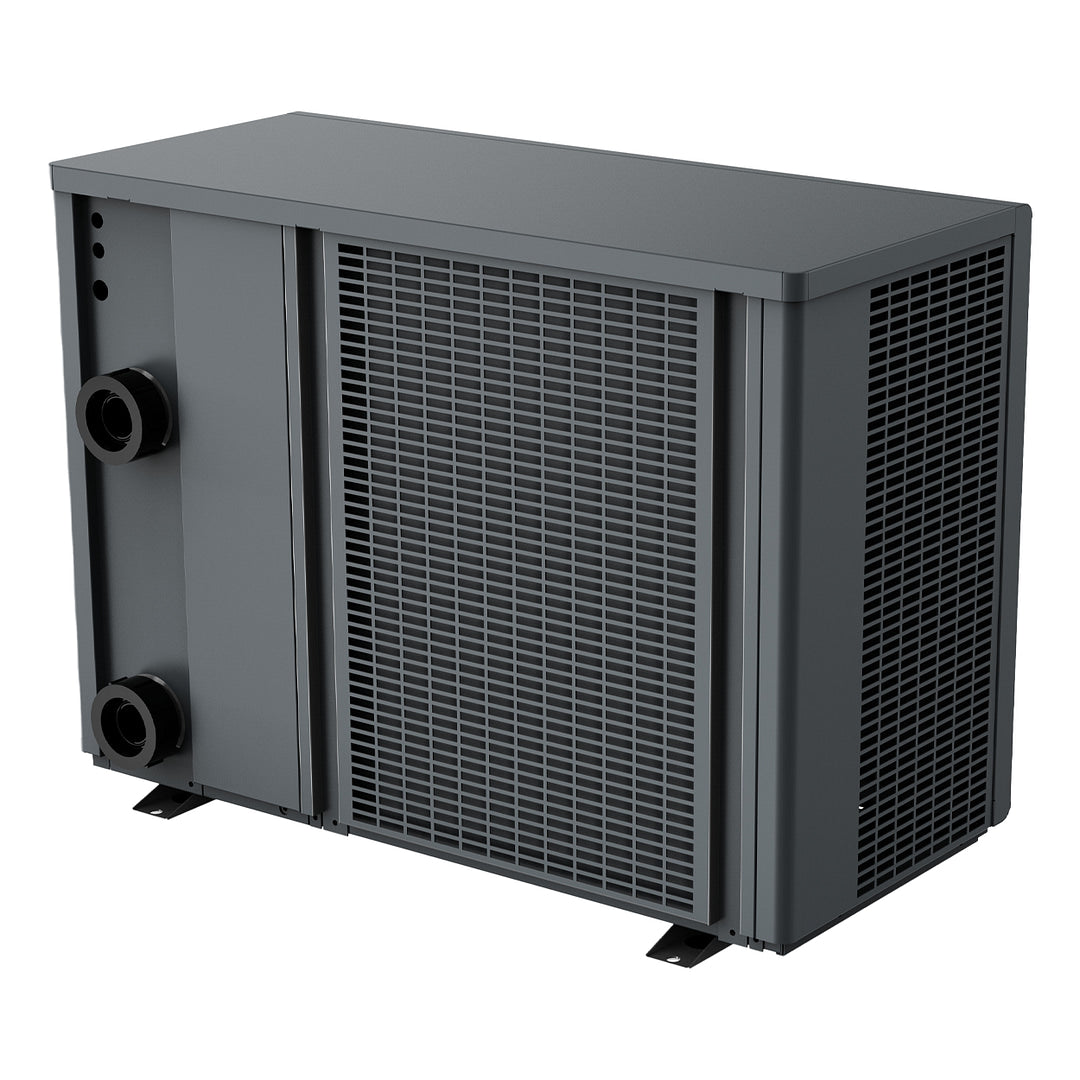

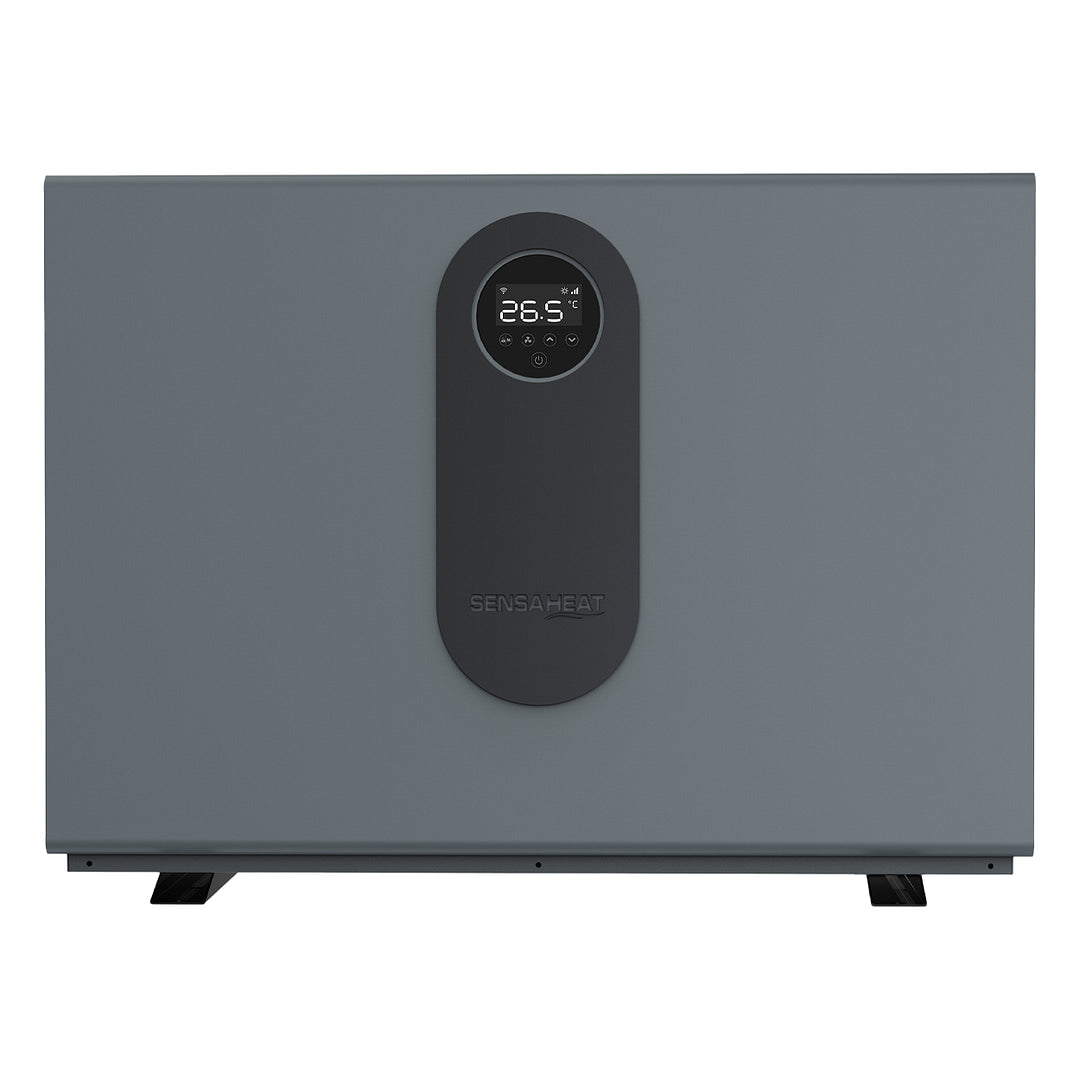

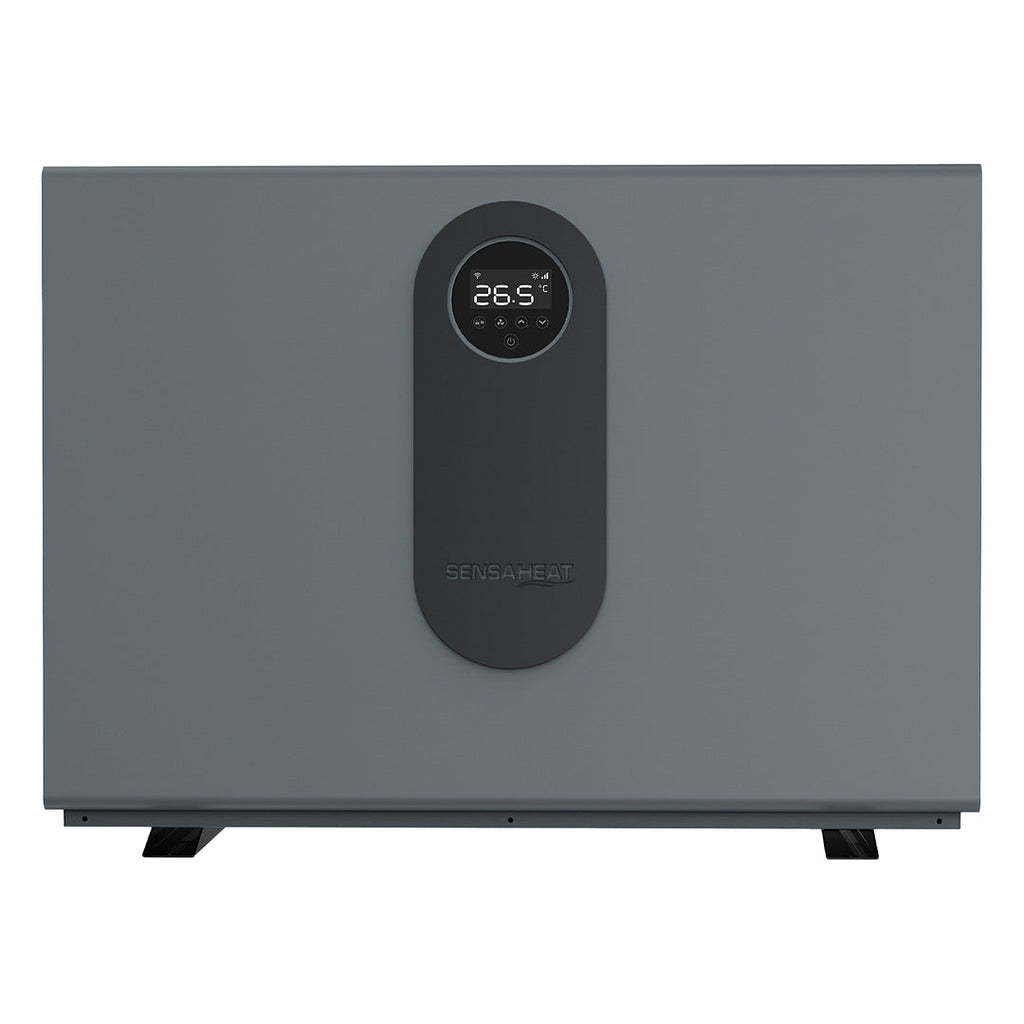

The SENSAHEAT PI+ Series 35.0kW Heat Pump is the largest model in the PI+ range, designed specifically for larger residential and commercial pool and spa systems in Australia and New Zealand. It delivers powerful, energy-efficient performance with quiet operation, thanks to advanced inverter technology and a patented back-discharge design.

Highlights

• Model Number: SH-HPPI35Ps

• 35.0kW premium inverter pool and spa heat pump (Three Phase)

• Built for large pools, spas, and commercial applications

• Inverter technology reduces energy consumption

• Extremely quiet operation with patented back-discharge airflow

• Reverse cycle operation – heats and cools

• Touchscreen control panel for ease of use

• Wi-Fi enabled for remote access and control

• Titanium heat exchanger for extended resistance to corrosion

• Mitsubishi DC compressor for stable, efficient performance

• Engineered specifically for Australian and New Zealand conditions

• Full range available from 9kW up to 35kW

Construction & Features

• Quiet performance from back-discharge airflow system

• Hard-wired three-phase electrical connection

• IPX4 weather resistance for outdoor installation

• 40mm union connection compatible with standard pool plumbing

• Installation clearance required: 500mm front and back, 1000mm on both sides

Applications

• Large residential pools

• Commercial pool and spa setups

• All-year heating and cooling performance

• Great for renovations or new builds where high output is required

Specifications

Heat Pump Performance

• Heating Capacity: 35.0kW

• Maximum Input Current: 10.5A per phase

• Union Size: 40mm

• Plug Type: Hard Wired

Dimensions & Weight

• Length: 1310mm

• Width: 527mm

• Height: 990mm

• Weight: 140kg

What’s Included

• 1 x SENSAHEAT PI+ Series 35.0kW Heat Pump (Model SH-HPPI35Ps)

• Digital touchscreen controller

• Installation and user manual

• Access to Spa-Craft's dedicated phone support team

Warranty

• 25 Years – Titanium heat exchanger

• 5 Years – Compressor

Downloads

SensaHeat PI+ Series Datasheet

SensaHeat PI+ Series User Manual
