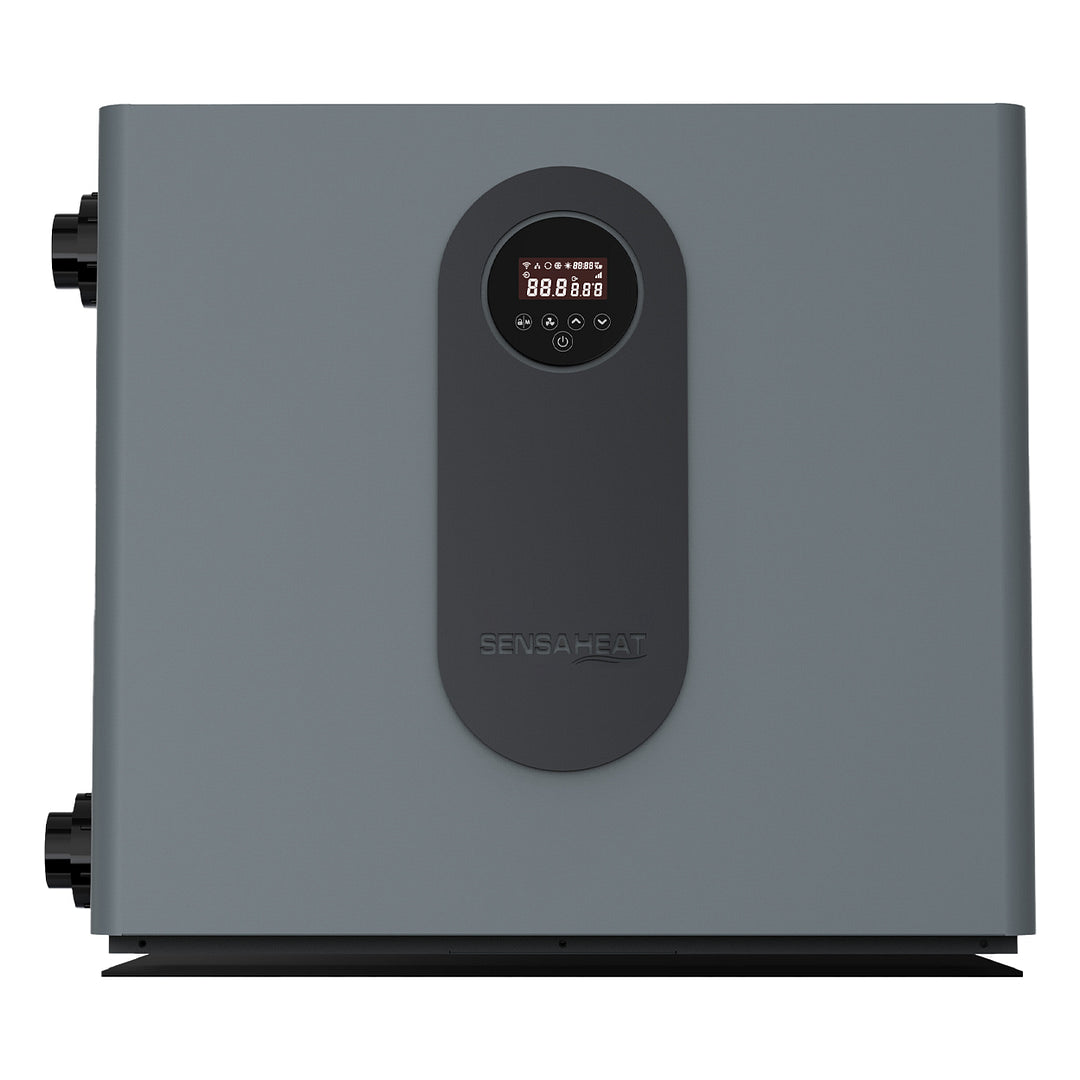

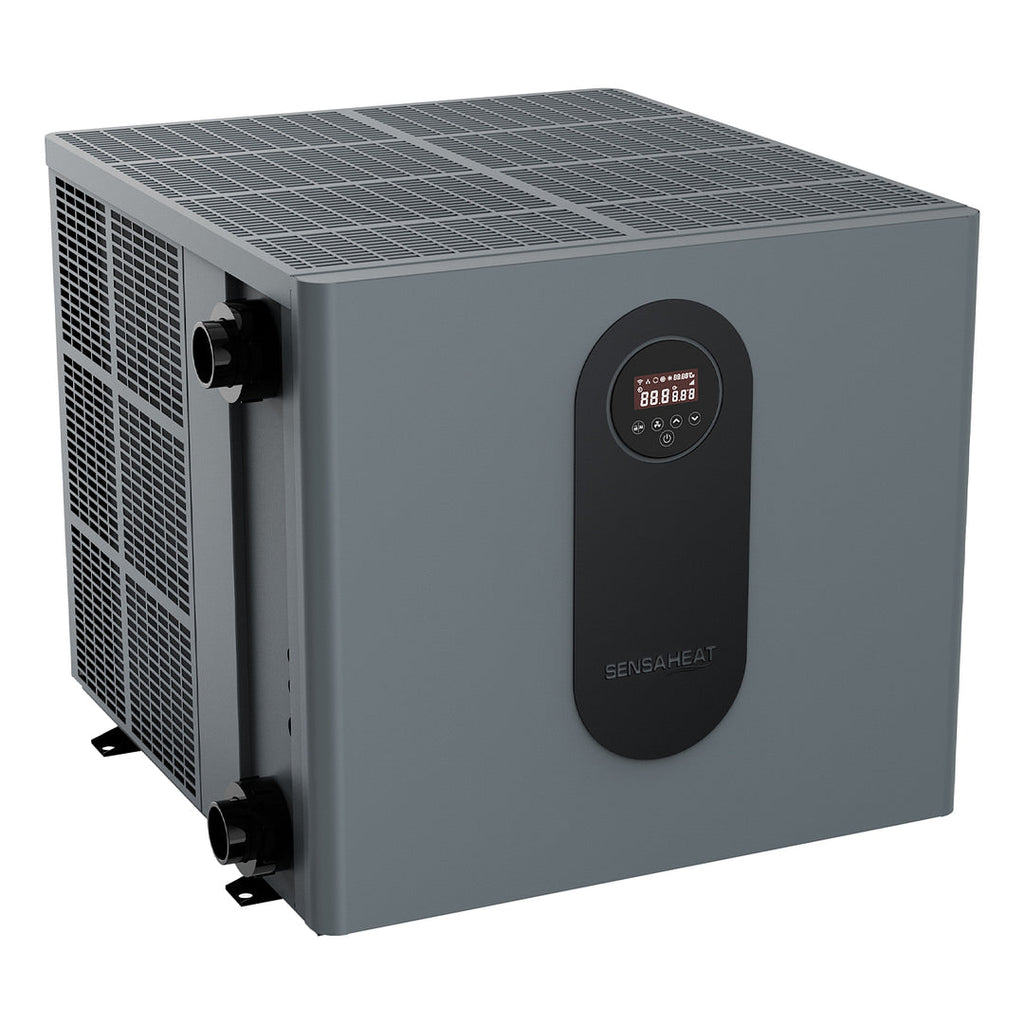

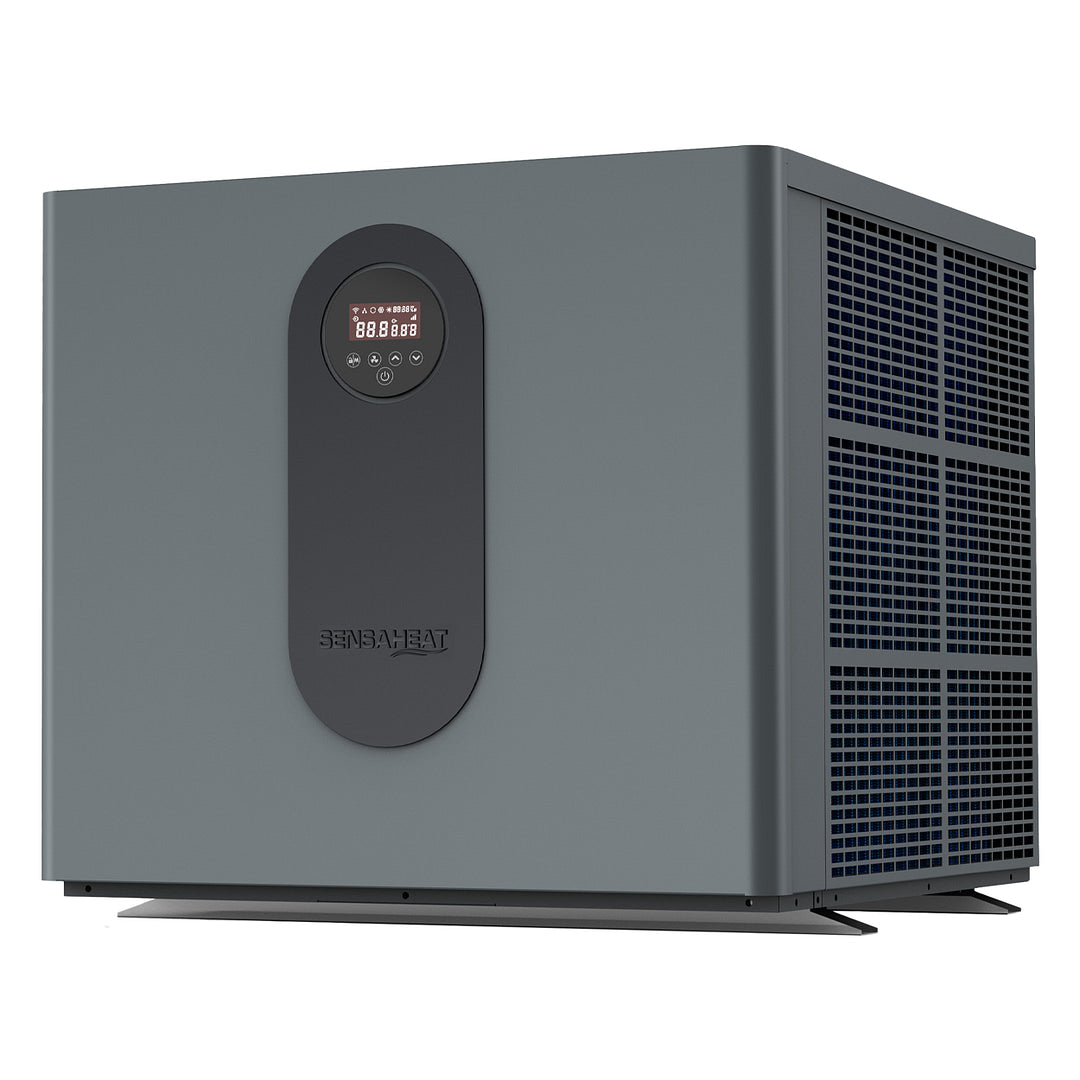

The SENSAHEAT TDX Series 14.0kW Heat Pump is a compact, top-discharge unit engineered for efficient heating and cooling of pools and spas across Australia and New Zealand. With inverter technology, eco-friendly R32 refrigerant, and quiet operation, it's ideal for limited-space installations without sacrificing performance.

Highlights

• Model Number: SH-HPTDX14

• 14.0kW inverter pool and spa heat pump

• Top discharge air outlet – perfect for tight spaces

• Inverter technology for lower running costs

• Reverse cycle – provides both heating and cooling

• Ultra-quiet operation for residential comfort

• Eco-friendly R32 refrigerant

• Touchscreen control panel

• Wi-Fi enabled as standard

• Titanium heat exchanger for durability

• Mitsubishi DC compressor for reliable performance

• Purpose-built for Australian and New Zealand environments

• Available in sizes from 11kW to 40kW

Construction & Features

• Top discharge fan for vertical airflow – ideal where side clearance is limited

• Quiet and efficient operation

• IPX4 rated – suitable for outdoor installation

• 40mm union plumbing connection

• Hard-wired installation (plug not included)

Applications

• Small to medium residential pools

• In-ground and above-ground spas

• Great for areas with limited clearance or installation space

• Year-round heating and cooling

Specifications

Heat Pump Performance

• Heating Capacity: 14.0kW

• Maximum Input Current: 12.5A

• Union Size: 40mm

• Plug Type: Hard Wired

• IP Rating: IPX4

Dimensions & Weight

• Length: 710mm

• Width: 753mm

• Height: 693mm

• Weight: 66kg

What’s Included

• 1 x SENSAHEAT TDX Series 14.0kW Heat Pump (Model SH-HPTDX14)

• Touchscreen controller

• Installation and user manual

• Access to Spa-Craft’s expert phone support

Warranty

• 25 Years – Titanium heat exchanger

• 8 Years – Compressor

Downloads

SensaHeat TDX User Manual

SensaHeat TDX Data-Sheet
